Fuel System

Return to the Parts Index

Fuel pump

what

where

Fuel pump control module

what

where

Fuel dampener

what

where

Fuel pressure regulator

what

where

Fuel filter

what

where

Fuel injector

what

where

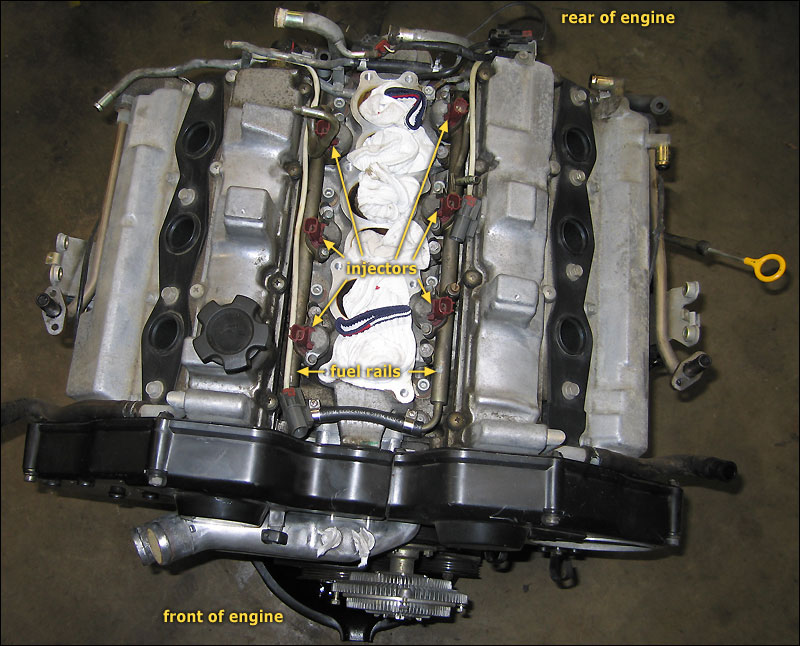

Fuel rails

what

where

Fuel tank

what

where

Pressure Regulator Vacuum Relief (PRVR)

what

where

tech


Parts

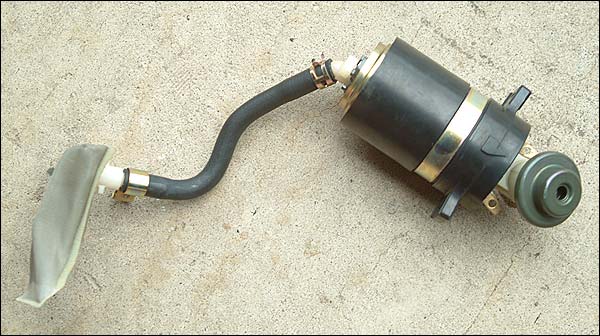

Fuel Pump, 2-seater, view 1

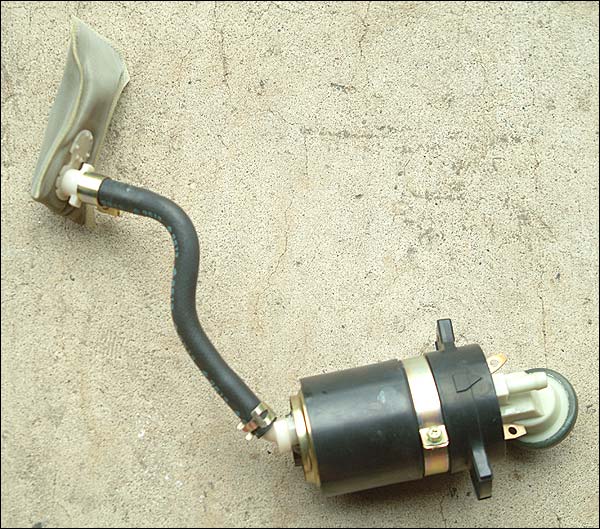

Fuel Pump, 2-seater, view 2

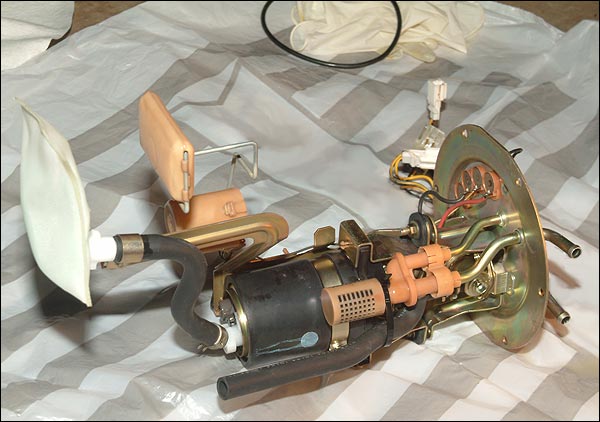

Fuel Pump in mounting assembly, with gasket in background

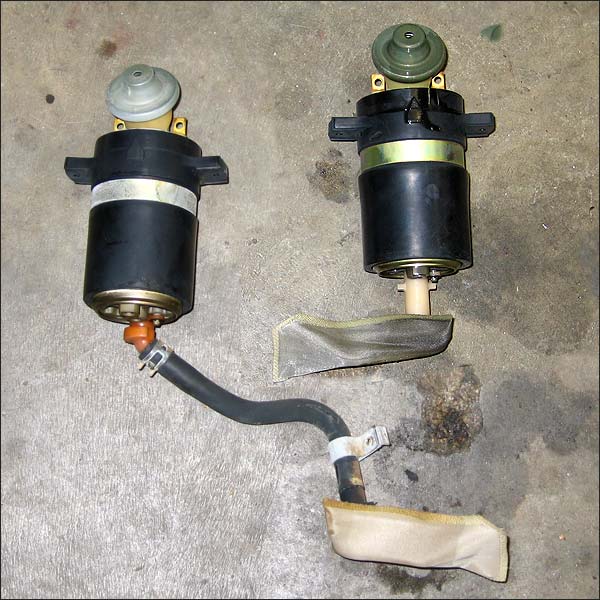

Fuel Pump comparison - 2-seater on left, 2+2 on right

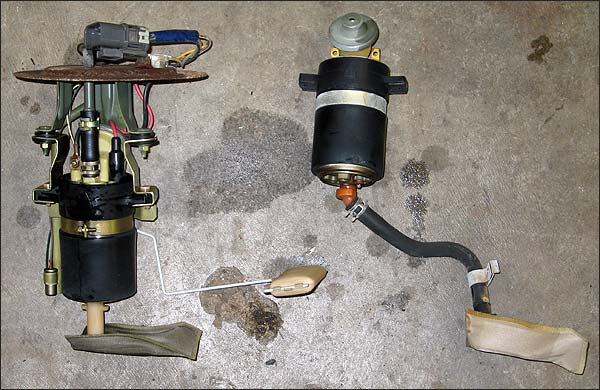

Fuel Pump comparison - 2+2 on left in assembly, 2-seater on right

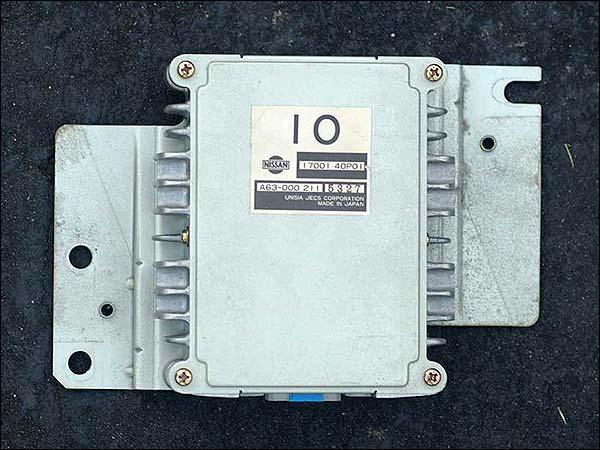

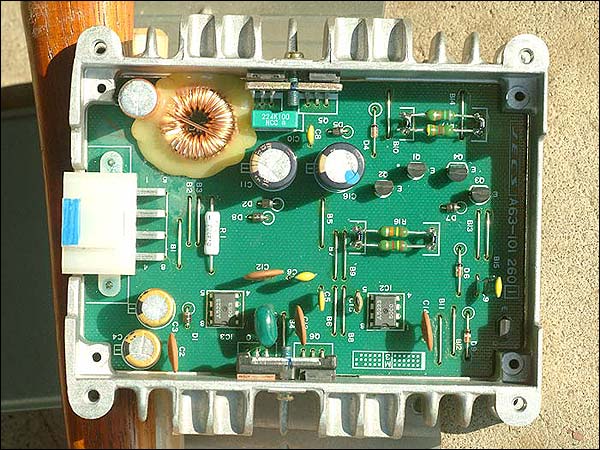

Fuel Pump Control Module, view 1

Fuel Pump Control Module, view 2

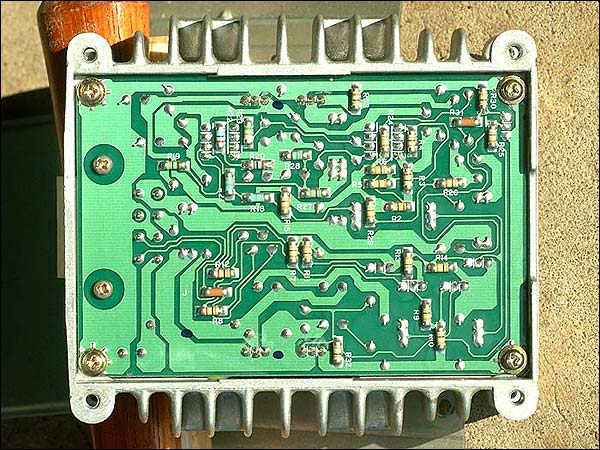

Fuel Pump Control Module, view 3

Fuel Dampener

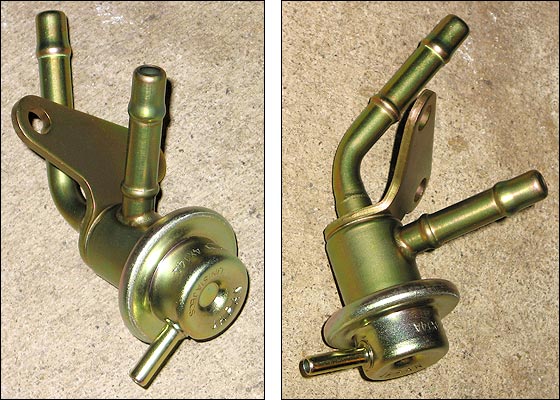

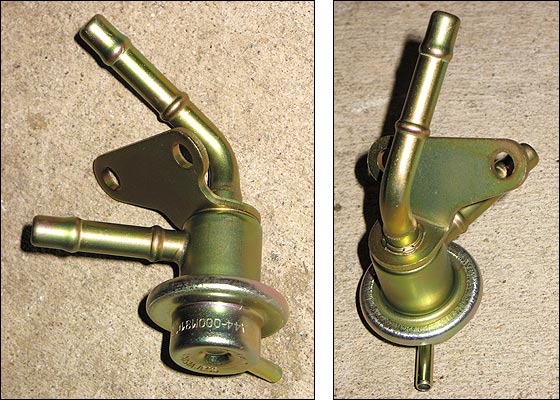

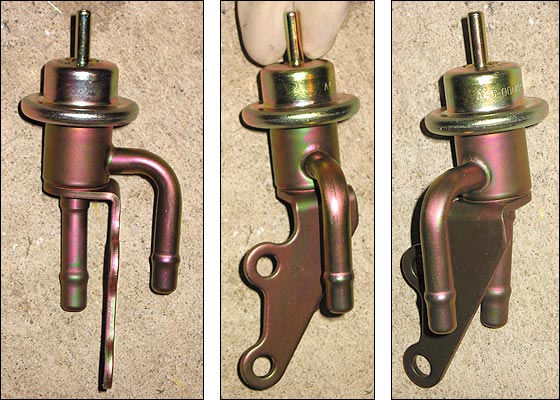

Fuel Pressure Regulator, views 1 & 2

Fuel Pressure Regulator, views 3 & 4

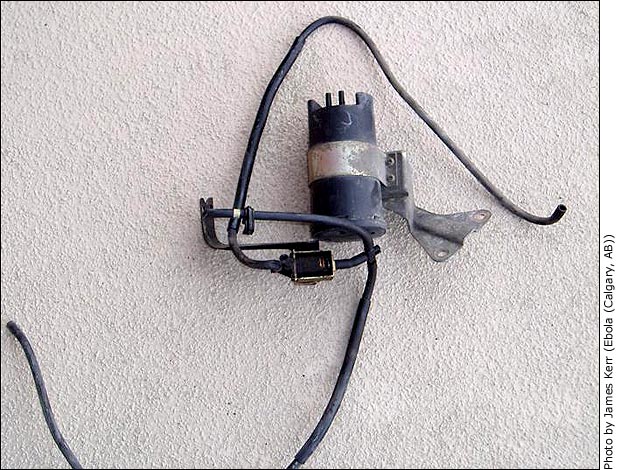

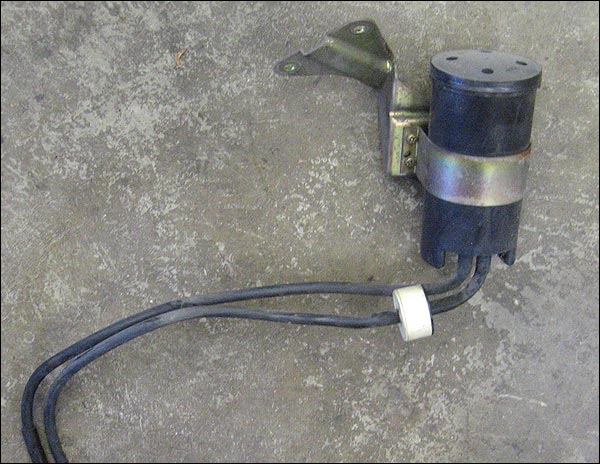

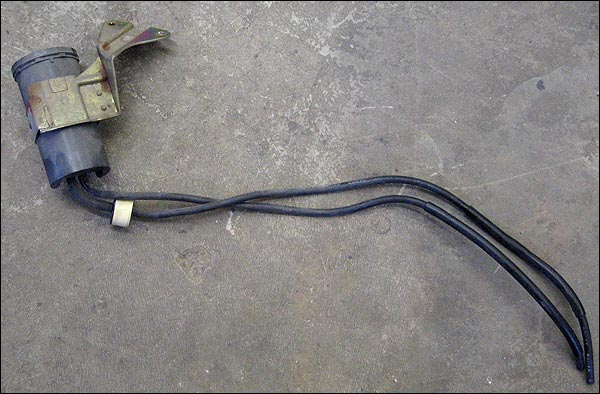

Pressure Regulator Vacuum Relief (PRVR), located in the driver's side fender

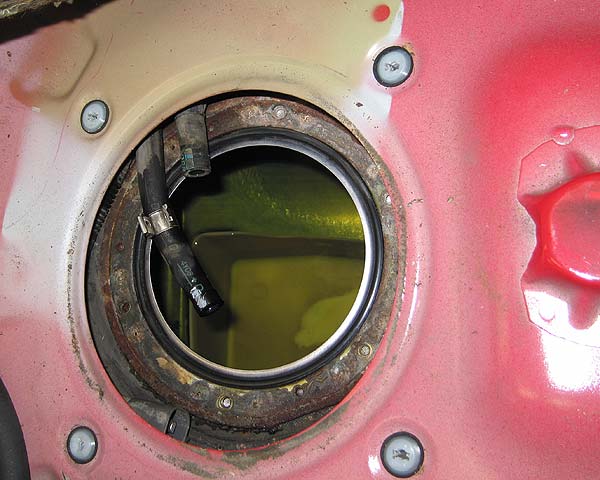

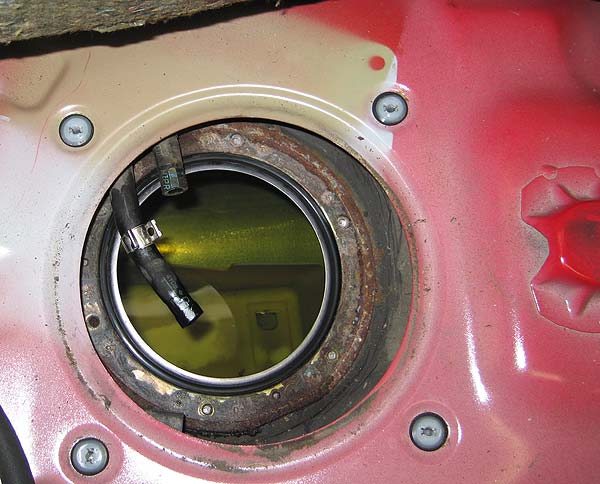

Gas tank interior baffles - 2+2

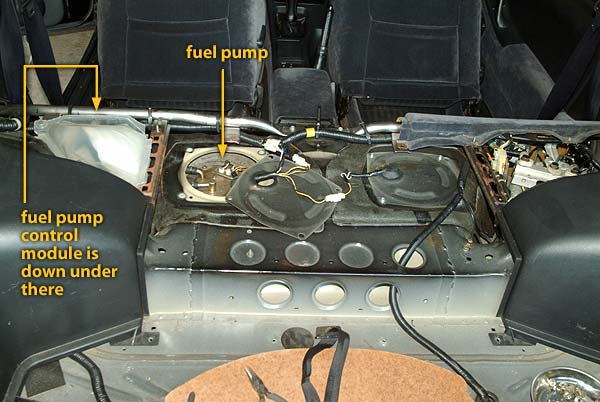

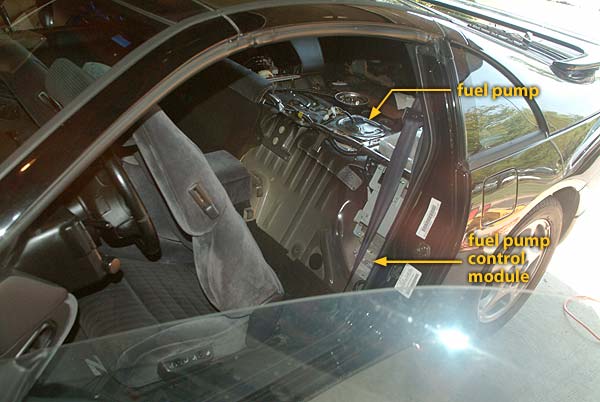

Locations

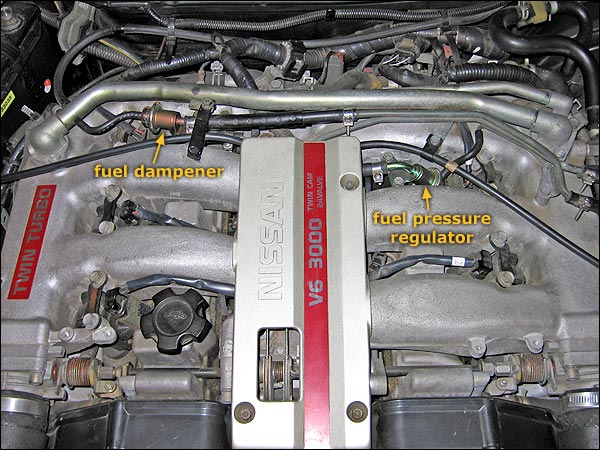

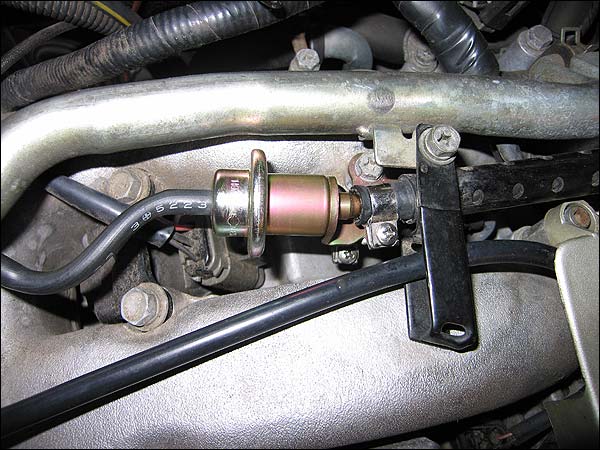

Fuel Dampener

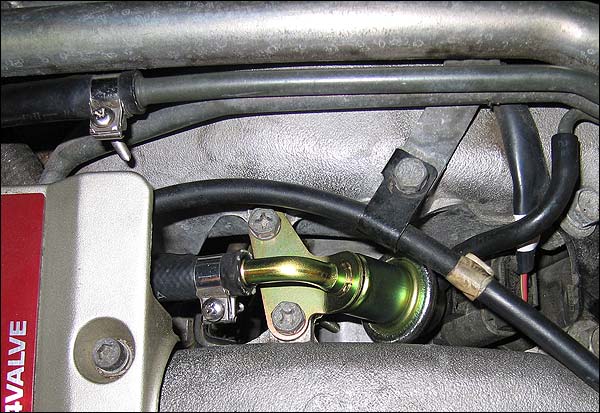

Fuel Pressure Regulator

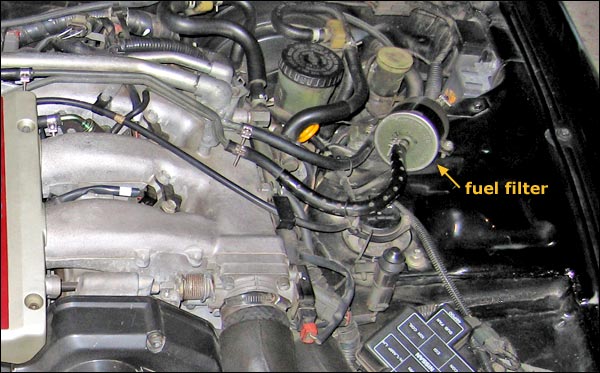

Fuel Filter

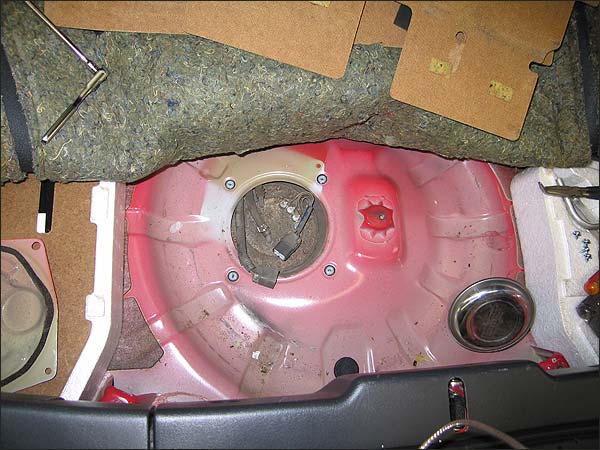

Fuel tank in a 2+2 is located below the spare tire well
